SM-01-01-03 Yale SM series Mortise Lock Comboset with Rose and Escutcheons, Cylinder with Knob inside and keys Outside, Black Finish

SKU: SM-01-01-03 |
Share it:

₹ 2,749
₹ 2,749 MRP: ₹ 4,899 44% OFF (inclusive of taxes )
New

Product Type: Door Handle and lockset

  • Door lever handle set
  • Mortise lock body included
  • Euro Profile cylinder with regular key
  • Suitable for wooden or aluminium doors

Description

Mortise Combosets of Lever Handle, with euro profile cylinder 60mm with both side keys. Regular keys option and lockbody.

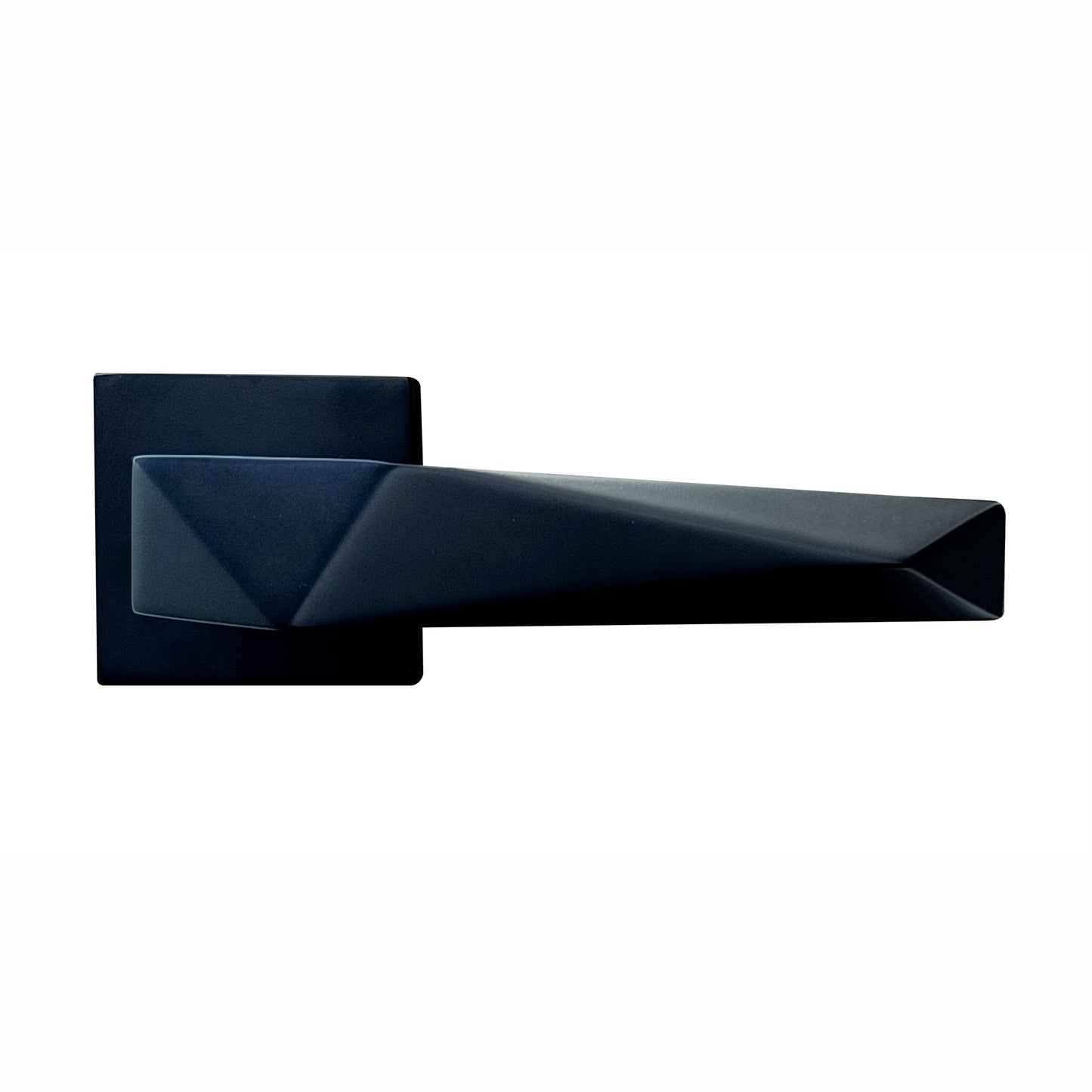

Lever Handle:

  • Material: Zinc Alloy
  • Spindle 8x8mm
  • Lever Handle with Rose and Escutcheons

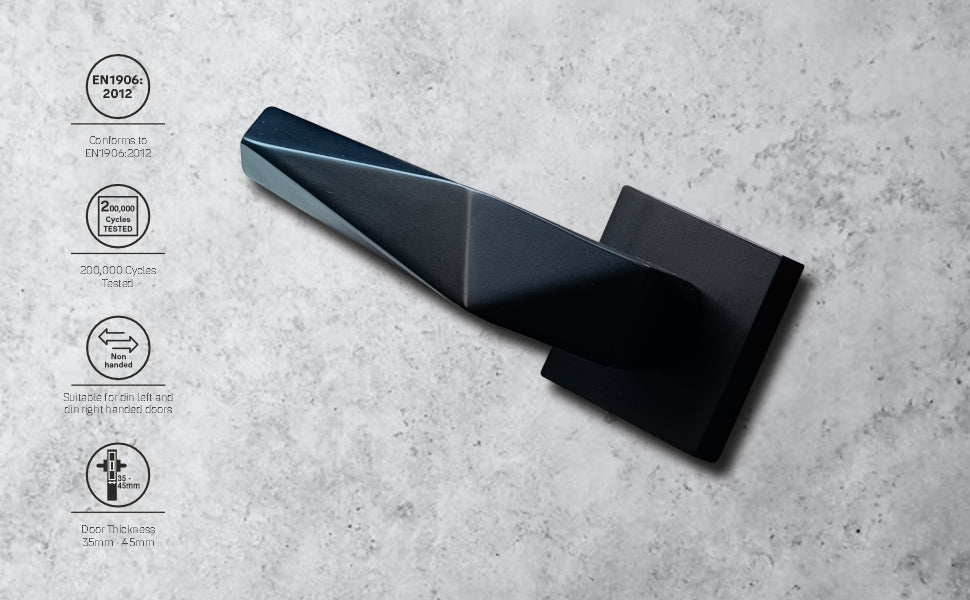

  • Conforms to EN1906:2012
  • Tested to 100,000 cycles
  • Finish options - Black Finish

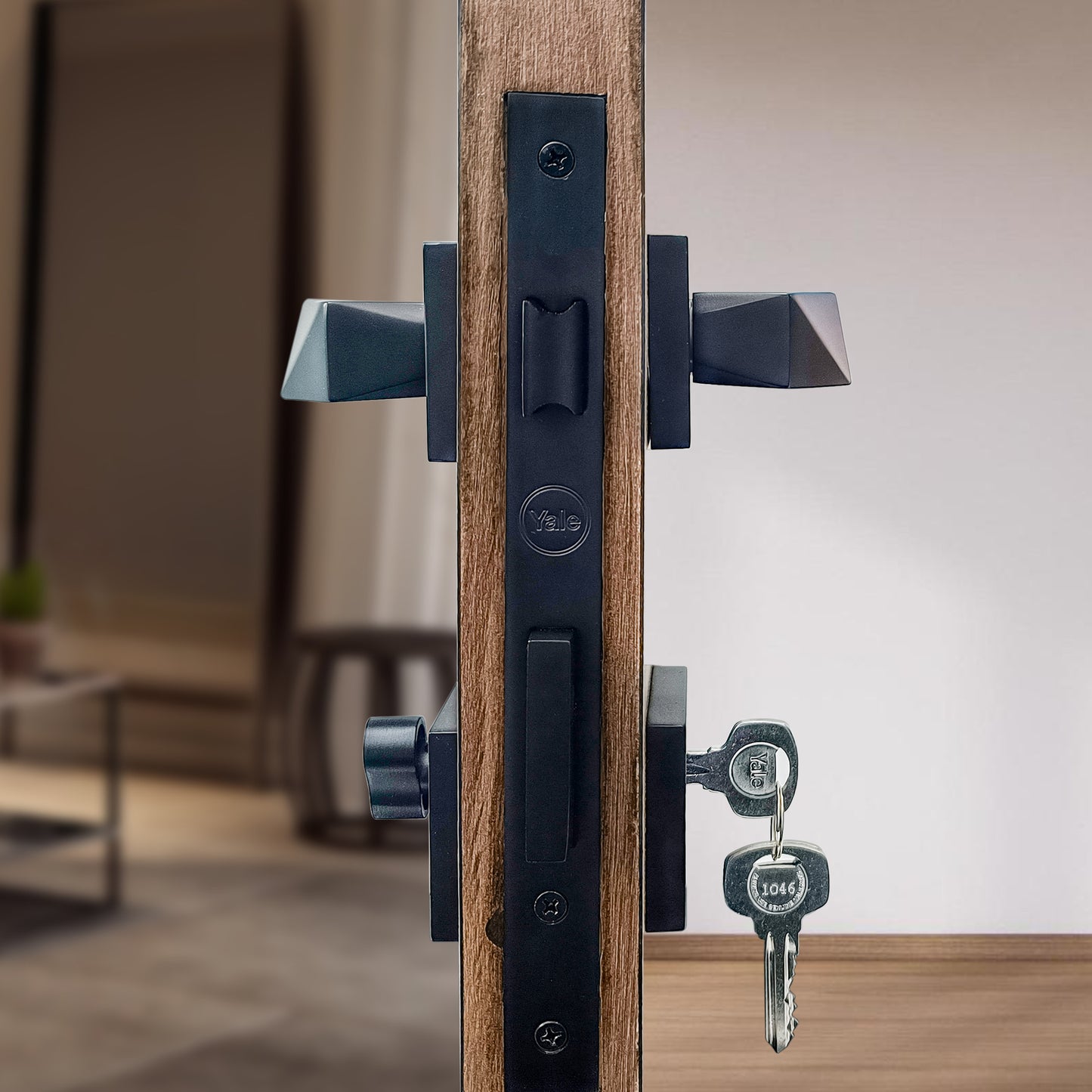

 Mortise Lock:

  • Backset - 45mm
  • Centre Distance - 85mm
  • 50,000 Cycles tested
  • Double Turn Deadbolt
  • Reversible latch
  • Suitable for Left or right side doors
  • Latch and Deadbolt - Zinc Alloy
  • Mild Steel Plates with Black Finish
  • With Strike plate and screws

Cylinder:

  • Euro Profile Cylinder
  • Length - 60mm
  • Knob Inside and Keys outside
  • Regular Brass Keys - 3Nos.
  • Material - Zinc Alloy
  • Color - Black

Technical Specification

Lever Handle Material Zinc Alloy
Connecting Spindle 8x8mm
Handle Standard Conforms to EN1906:2012
Lever Handle Tested 100,000 cycles
Finish options Satin Steel Finish
Mortise Lockbody Backset 45mm
Lockbody Centre Distance 85mm
Lockbody Tested 50,000 Cycles tested
Double Turn Deadbolt Yes
Reversible latch Yes
Universal Handing Suitable for Left or right side doors
Latch and Deadbolt Zinc Alloy
Front and Strike Plate Material Mild Steel
Euro Profile Cylinder Length Yes, 60mm
Knob Inside and Keys outside Yes
Keys Regular 3Nos.
Cylinder Material Zinc Alloy
