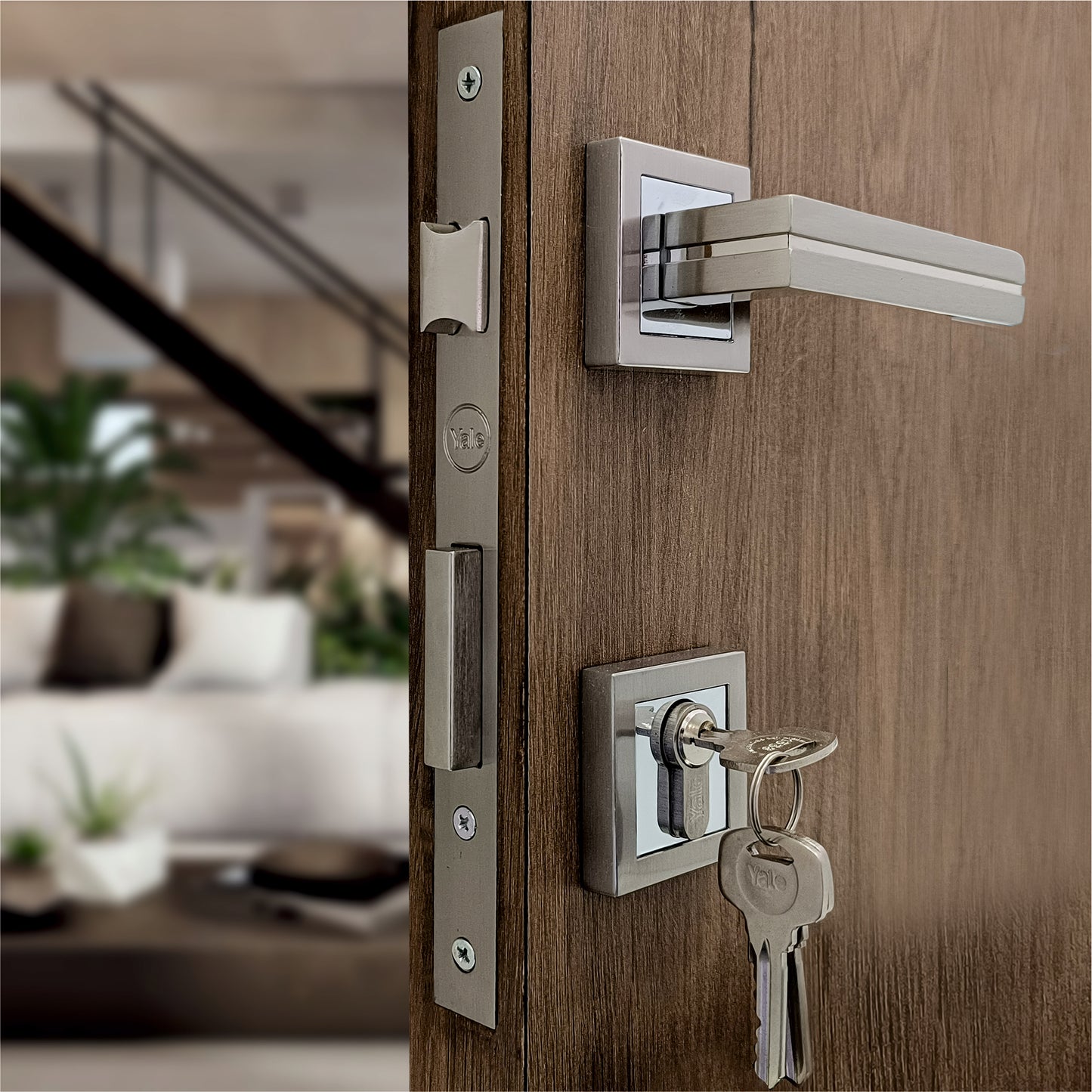

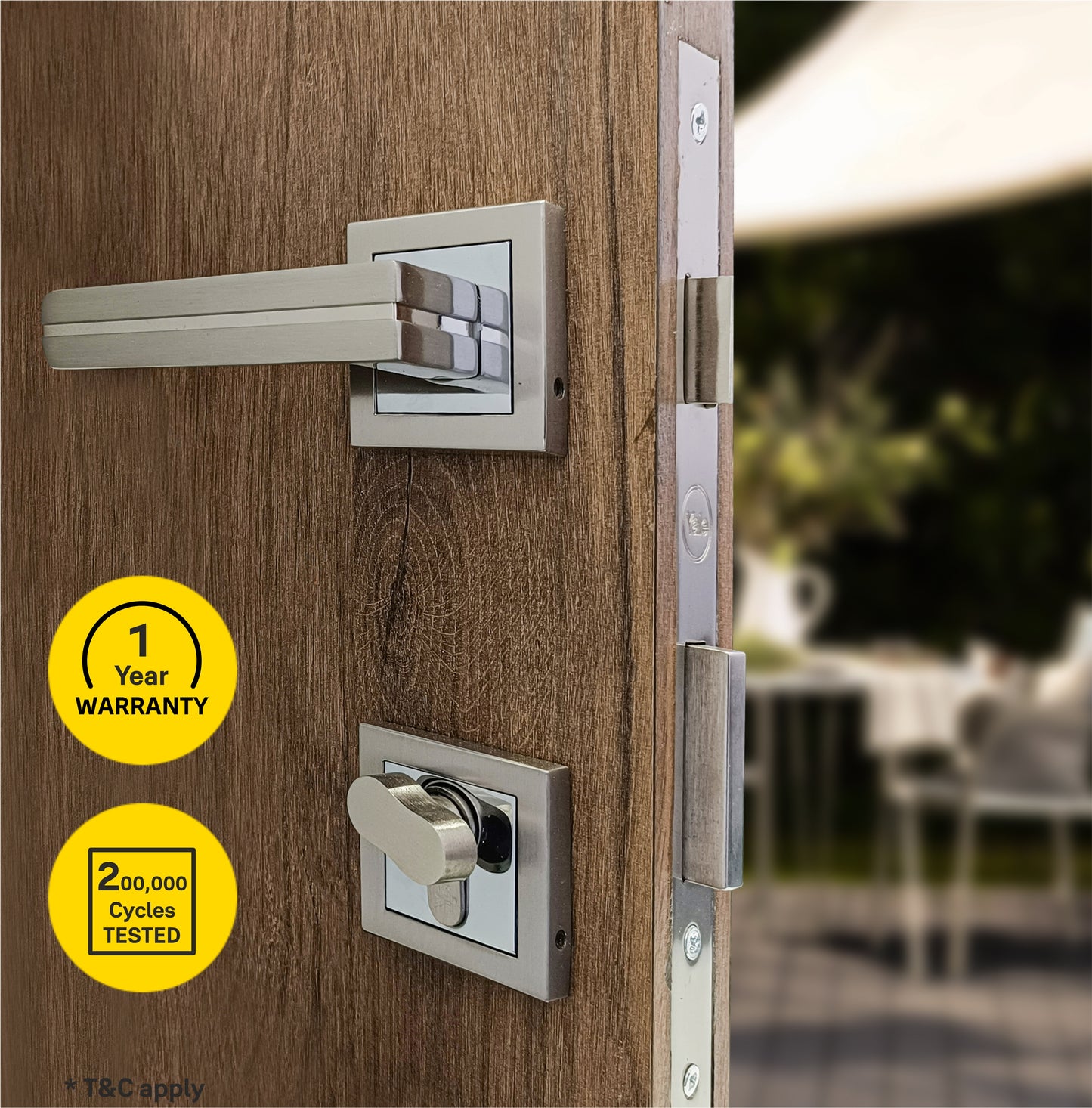

sm-02-01-01 yale sm series mortise lock comboset with rose and escutcheons, cylinder with knob inside and keys outside, ss finish
sm-02-01-01 yale sm series mortise lock comboset with rose and escutcheons, cylinder with knob inside and keys outside, ss finish
+
dcr 502 door closer, en size 2, silver.
dcr 502 door closer, en size 2, silver.
sm-02-01-01 yale sm series mortise lock comboset with rose and escutcheons, cylinder with knob inside and keys outside, ss finish
dcr 502 door closer, en size 2, silver.
Total : ₹ 3,568
Description

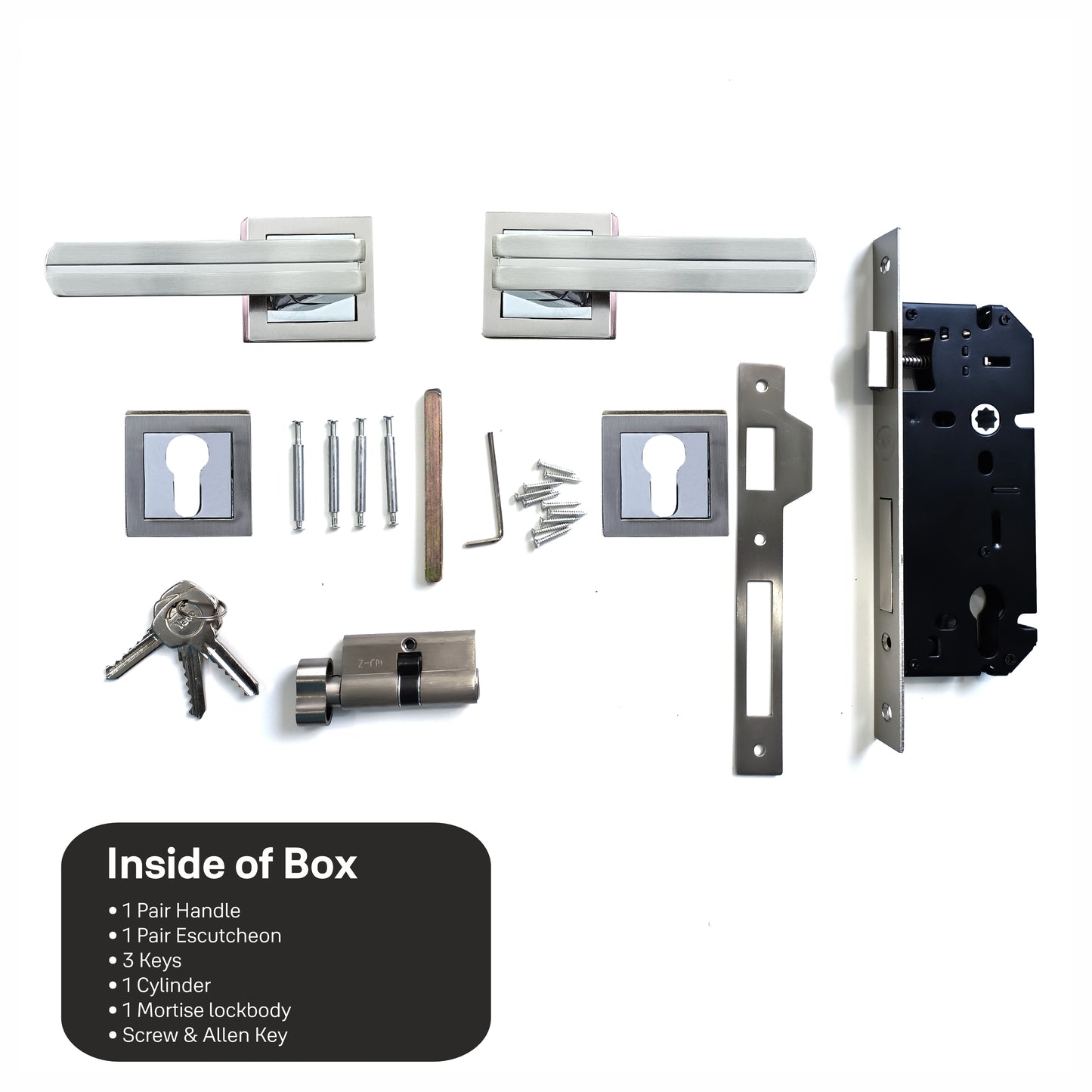

Mortise Combosets of Lever Handle, with euro profile cylinder 60mm with both side keys. Regular keys option and lockbody.

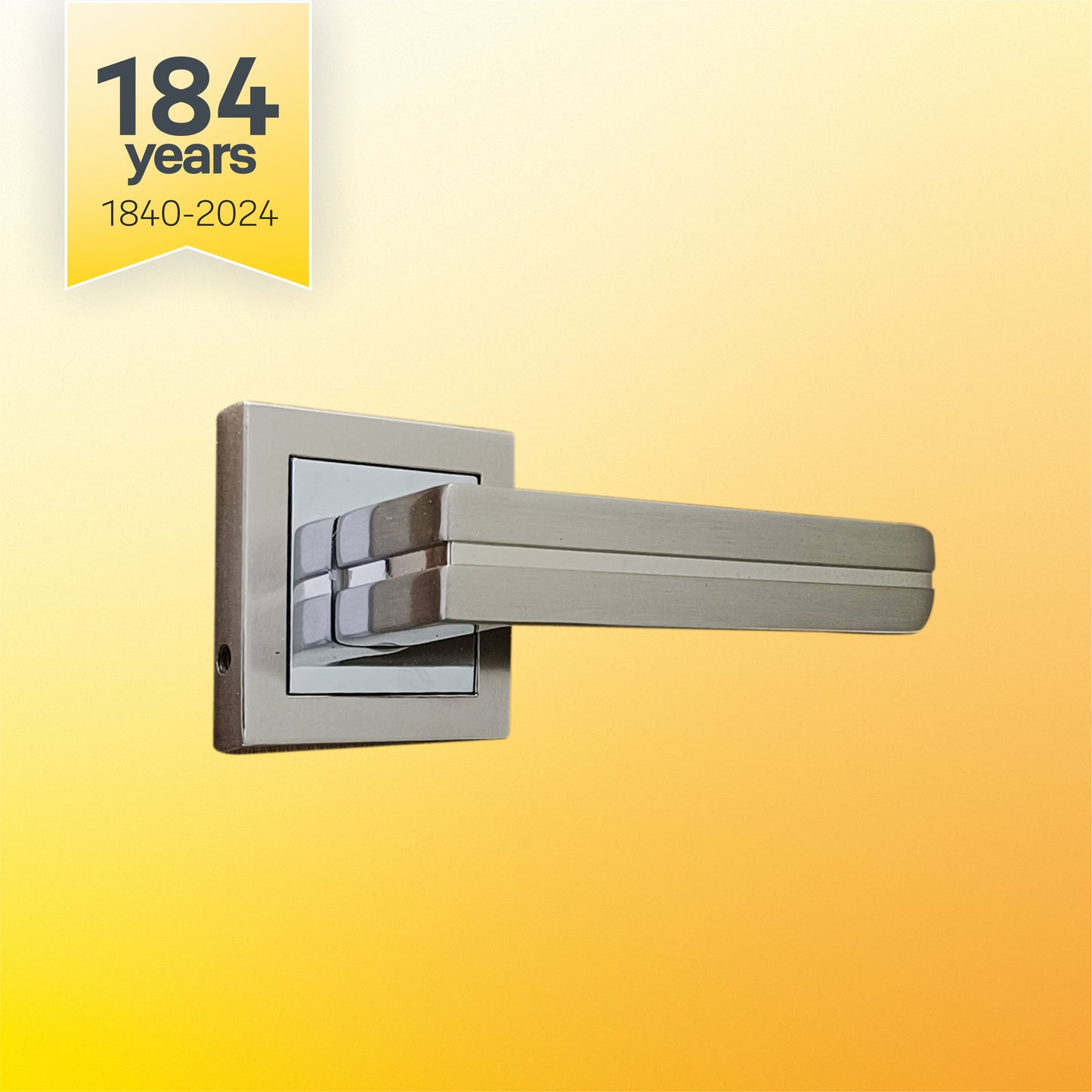

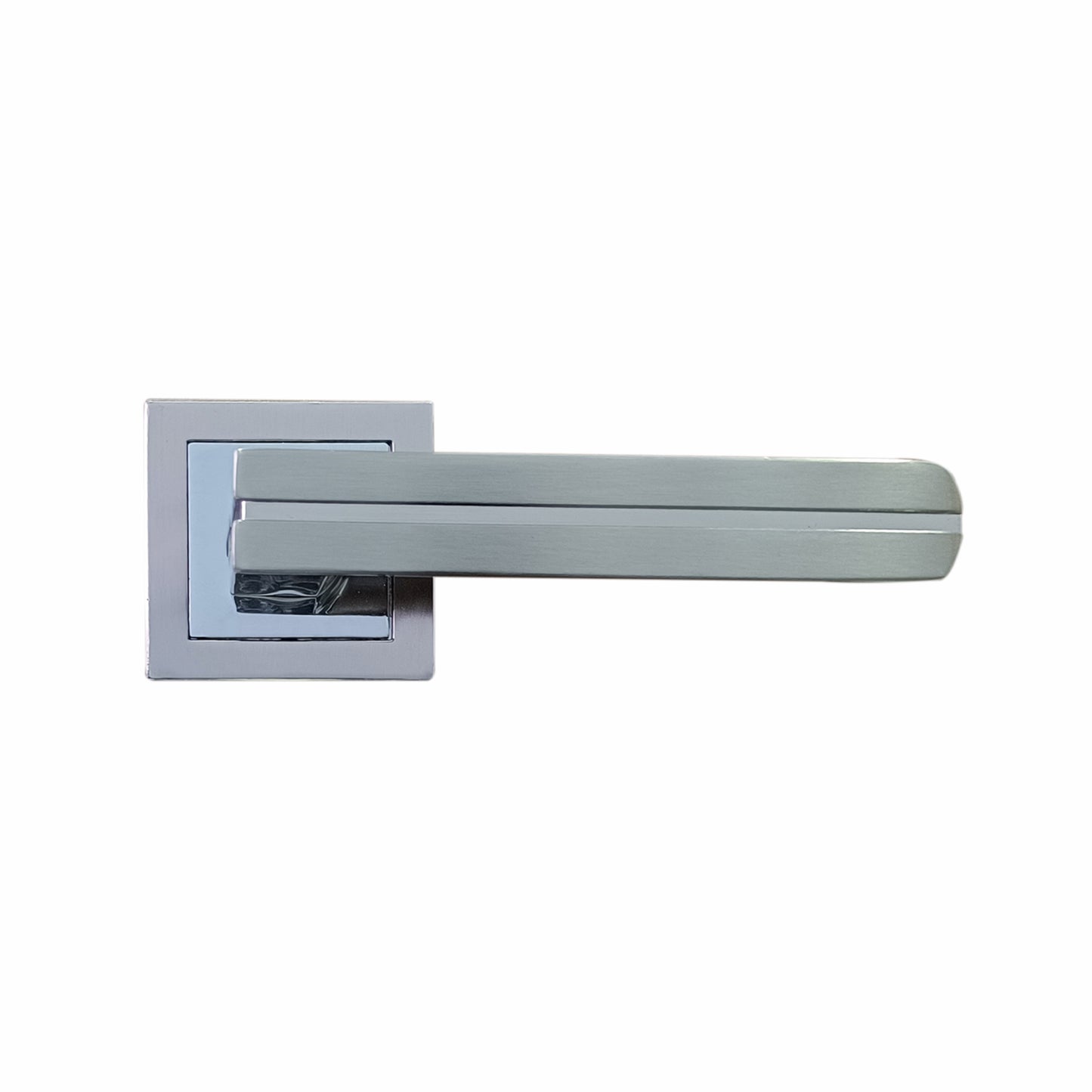

Lever Handle:

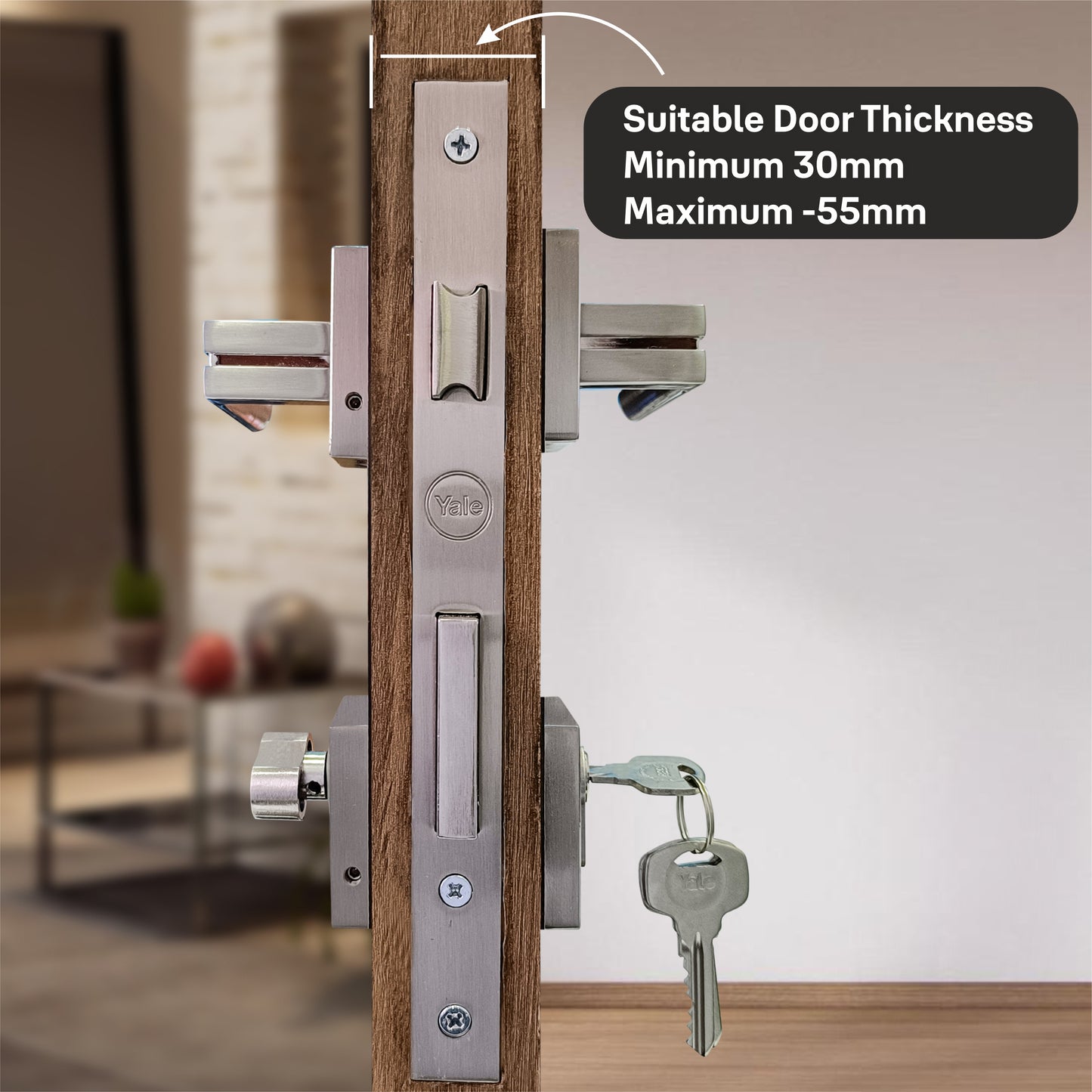

Mortise Lock:
Cylinder:
features
Manufactured as per the EN standards for durability and functionality
Lever handle tested for 100,000 cycles
Covered under any operational or manufacturing defects

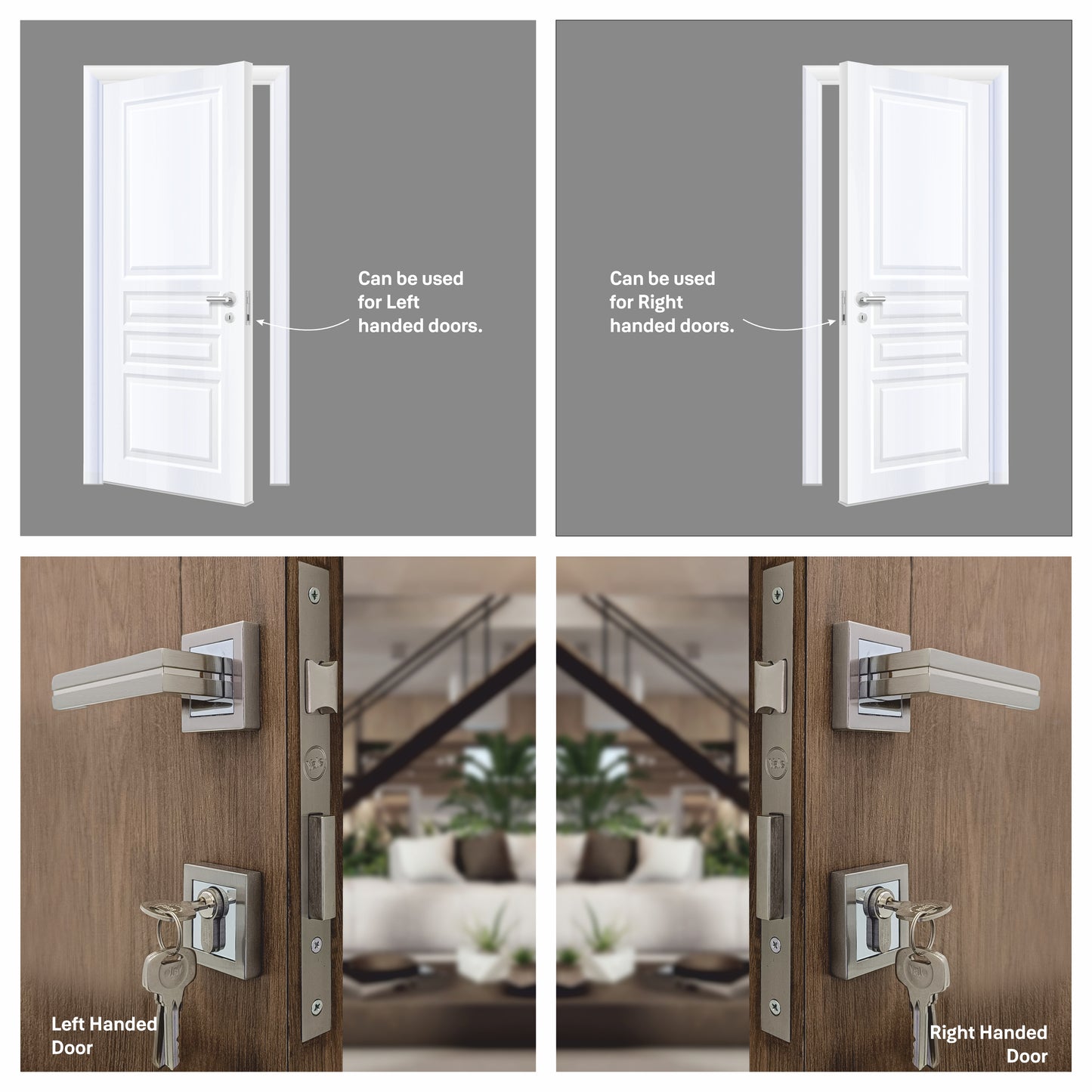

Suitable for right or left side opening doors

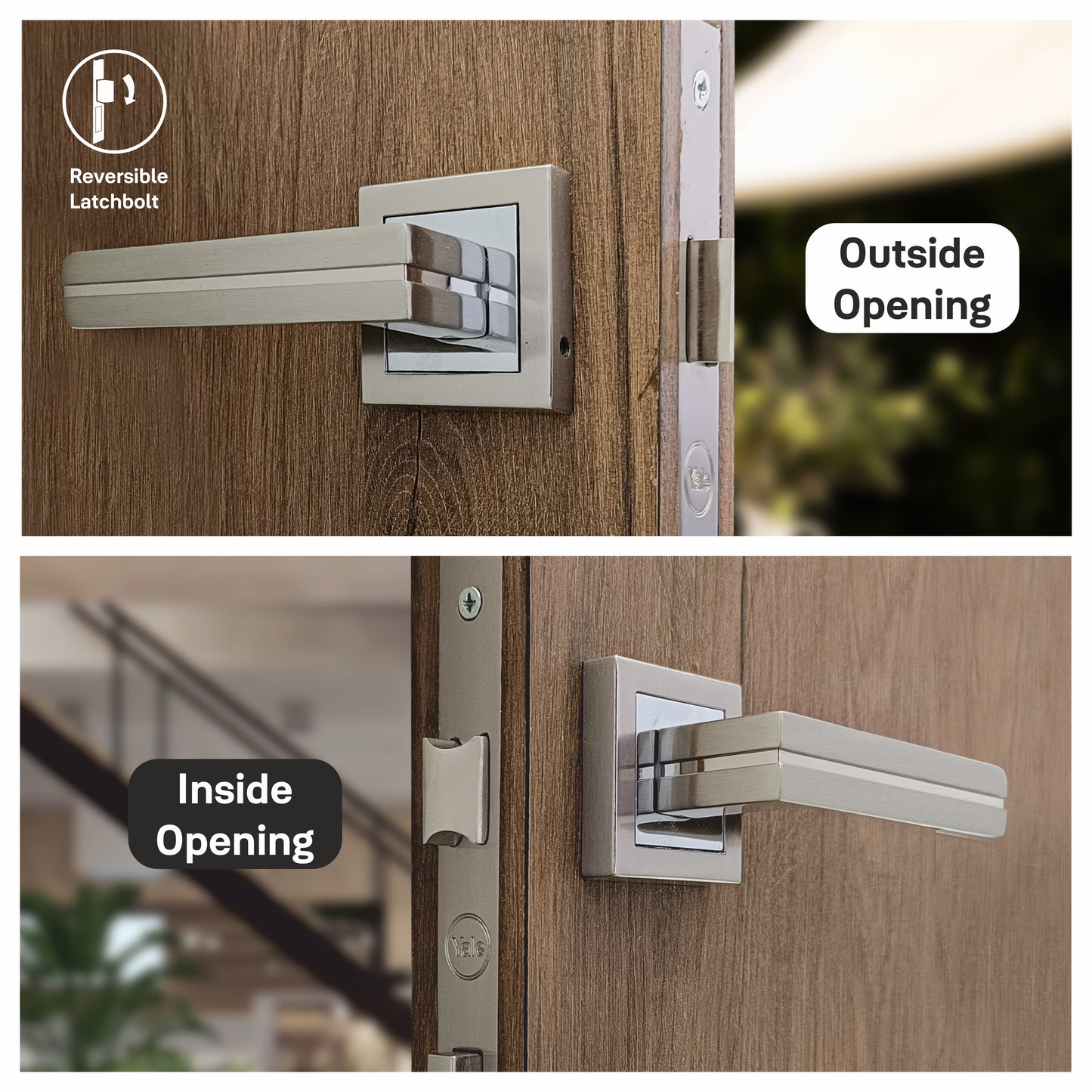

Suitable for inside or outside opening of door by changing the latch direction
Regular brass keys 3nos.
Solid lever handle with long grip for easy operations
Best grade materials for best aesthetic and functioning
Technical Specification
| Lever Handle Material | Zinc Alloy |
| Connecting Spindle | 8x8mm |

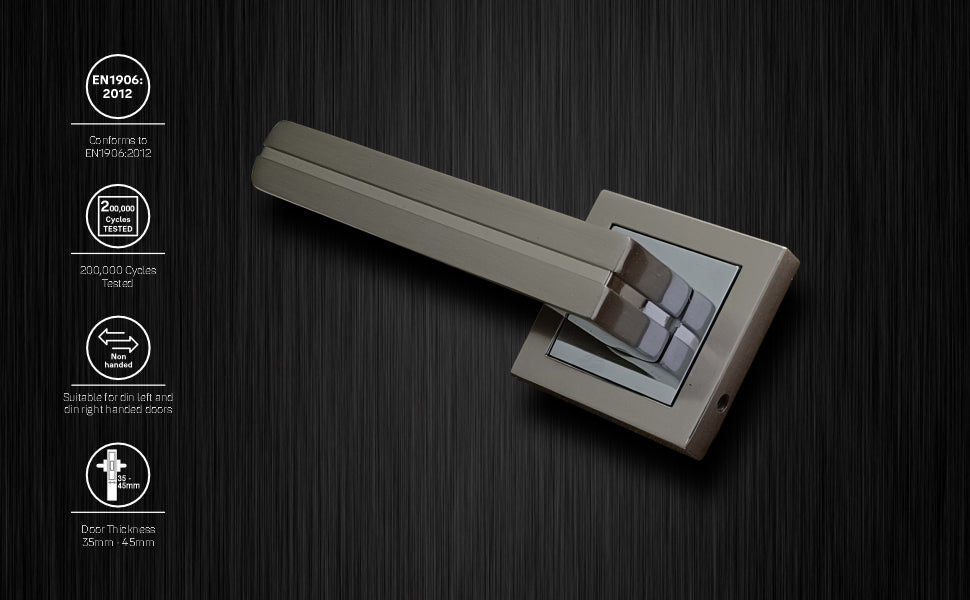

| Handle Standard | Conforms to EN1906:2012 |
| Lever Handle Tested | 100,000 cycles |
| Finish options | Satin Steel Finish |
| Mortise Lockbody Backset | 45mm |
| Lockbody Centre Distance | 85mm |
| Lockbody Tested | 50,000 Cycles tested |
| Double Turn Deadbolt | Yes |
| Reversible latch | Yes |
| Universal Handing | Suitable for Left or right side doors |
| Latch and Deadbolt | Zinc Alloy |
| Front and Strike Plate Material | Mild Steel |
| Euro Profile Cylinder Length | Yes, 60mm |

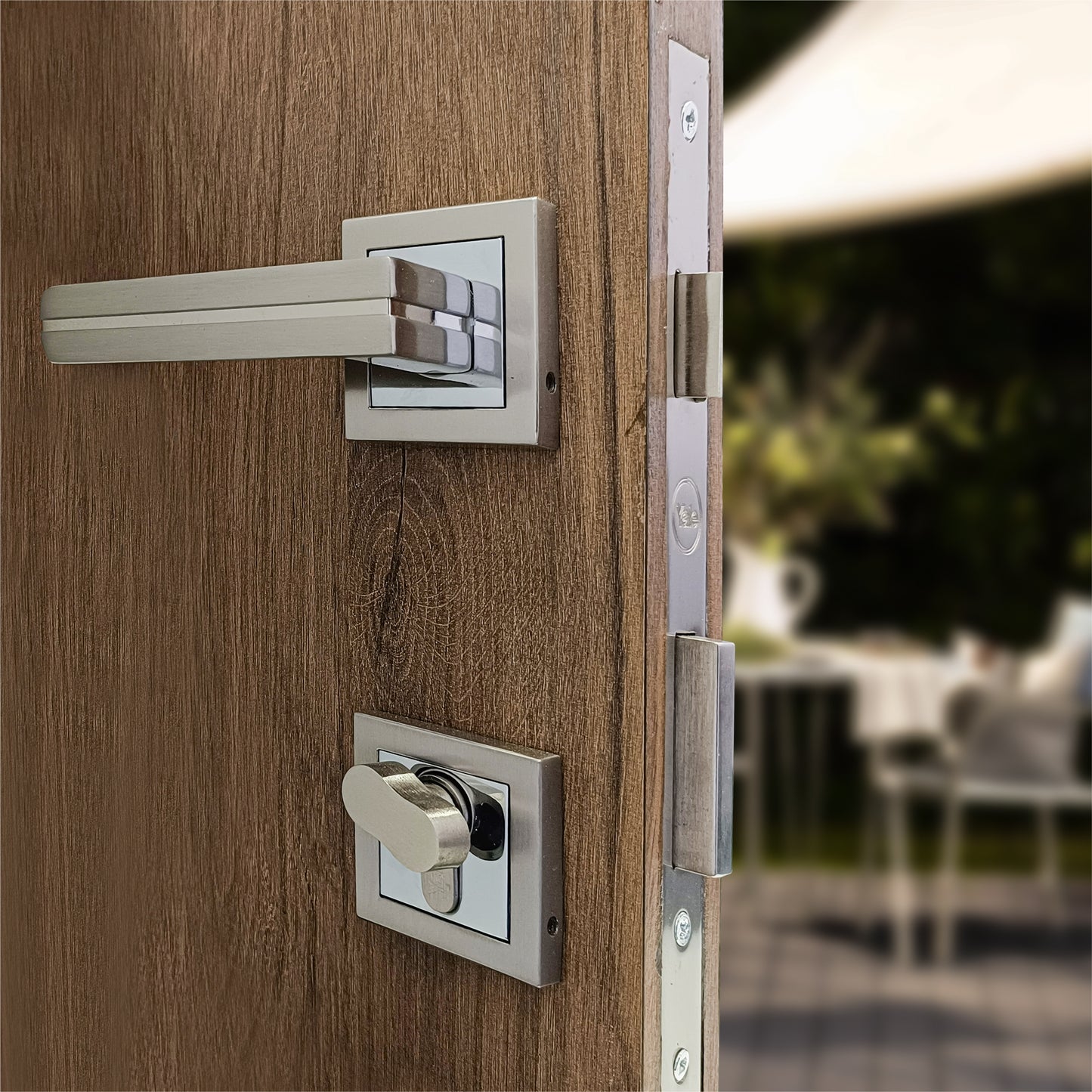

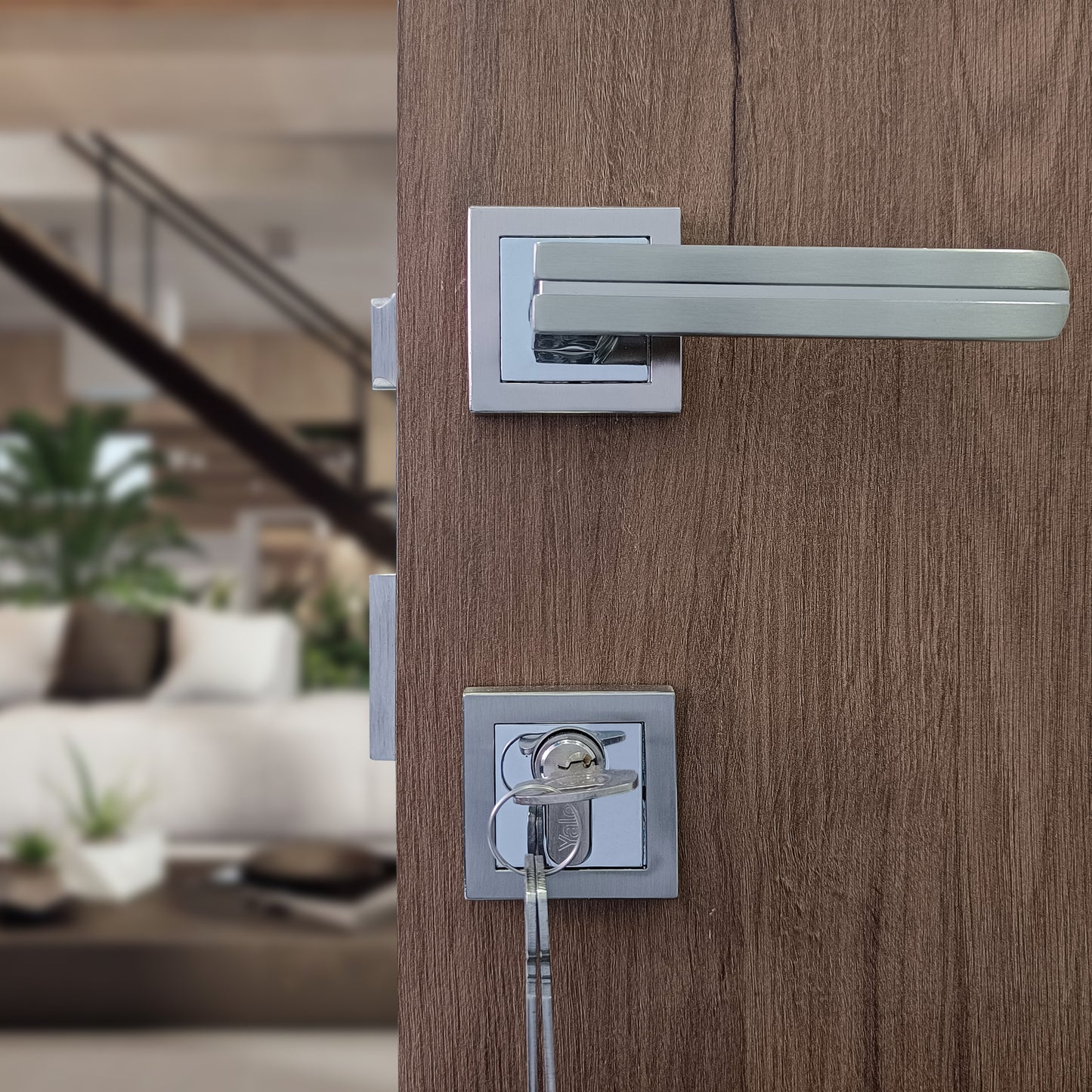

| Knob Inside and Keys outside | Yes |
| Keys | Regular 3Nos. |
| Cylinder Material | Zinc Alloy |
